產品描述：產品概述 生產動作流程 2大卷無紡布卷材上機→分切→幅寬方向N折→加液→擠壓牽引→切斷→計數堆疊→進入包裝膜1卷包裝膜卷材上機→跟標/定長走料→打橢圓孔→貼封口貼→包裹濕巾→縱向背封→往復式橫封及...
15896100778
生產動作流程
2大卷無紡布卷材上機→分切→幅寬方向N折→加液→擠壓牽引→切斷→計數堆疊→進入包裝膜1卷包裝膜卷材上機→跟標/定長走料→打橢圓孔→貼封口貼→包裹濕巾→縱向背封→往復式橫封及切斷→打碼→成品輸送（不含粘蓋）
2 rolls of non-woven fabric on the machine → slitting → N-folding in the width direction → adding liquid →
Squeeze out excess liquid and traction → cutting off → counting → entering the packaging film
1 roll of packaging film on the machine → following cursor / fixing length feeding → punching elliptical holes → sticking seals → wrapping wet wipes → longitudinal back sealing → reciprocating horizontal sealing and cutting→ coding → finished product delivery (without plasic cover )
設備雙伺服電機配置，觸摸屏內設定袋長，無空包。
配套進口光電眼，色差靈敏度高，定位更準確。
配套打碼機打印日期。
The equipment is equipped with double servo motors, and the bag length is set in the touch screen without empty bags
Equipped with imported photoelectric eyes, high color difference sensitivity and more accurate positioning.
Matching printer to print the date
| 參數名稱 | 參數值 |
|---|---|

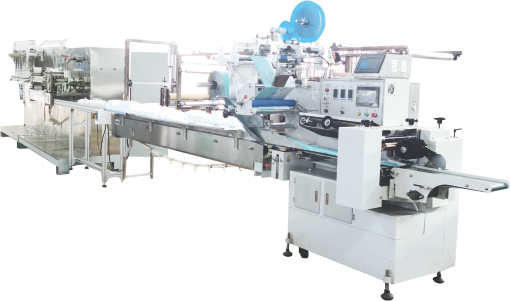

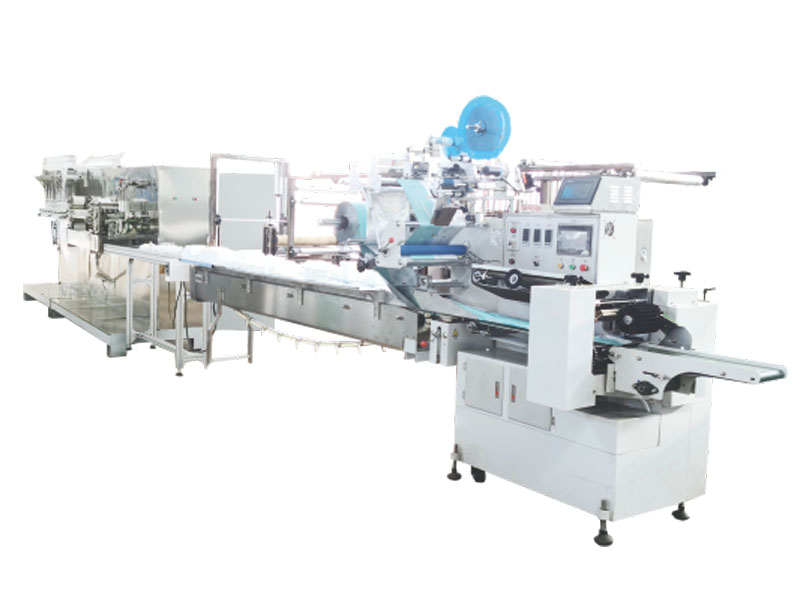

| 設備名稱 | 全自動30-120片濕巾生產線 |
| 型號 | YWJ-QS-F |

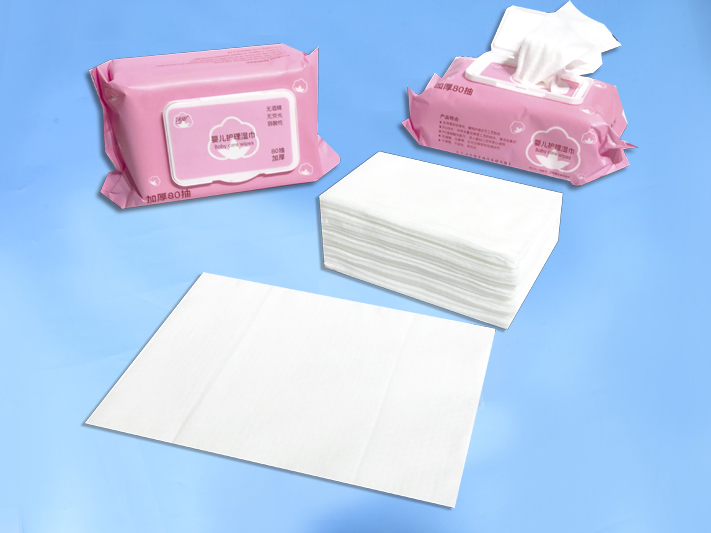

| 適用產品 | 各種尺寸和液體類型的帶插角包裝帶多片濕巾 |
| 折疊方法及尺寸 | 無紡布卷材幅寬900-1250mm 分切后150-250mm， N形折疊 |
| 原料紙管內徑 | 3英寸（75mm） |
| 原料直徑 | 無紡布≦1000mm 包裝膜≦400mm |
| 包裝膜原材料及幅寬 | 各種0pp熱封膜/復合膜/鋁塑復合膜/珠光膜等 |
| 成品濕巾外包裝尺寸范圍 | 寬 80-150mm 長150-300mm 高10-100mm |
| 生產速度 | 20-60包/分鐘 速度根據每包片數確定 |
| 電源電壓及頻率 | 380v，50hz，11kw |
| 設備重量 | 4500kg |
| 生產占地面積 | 14.5m*4m*1.95m |
| 氣源需求 | 0.5-0.8（Mpa）>0.36（m3/h) |
| 設備材質 | 整機不銹鋼包覆 |
該生產線由三部分組成：
The production line consists of three parts

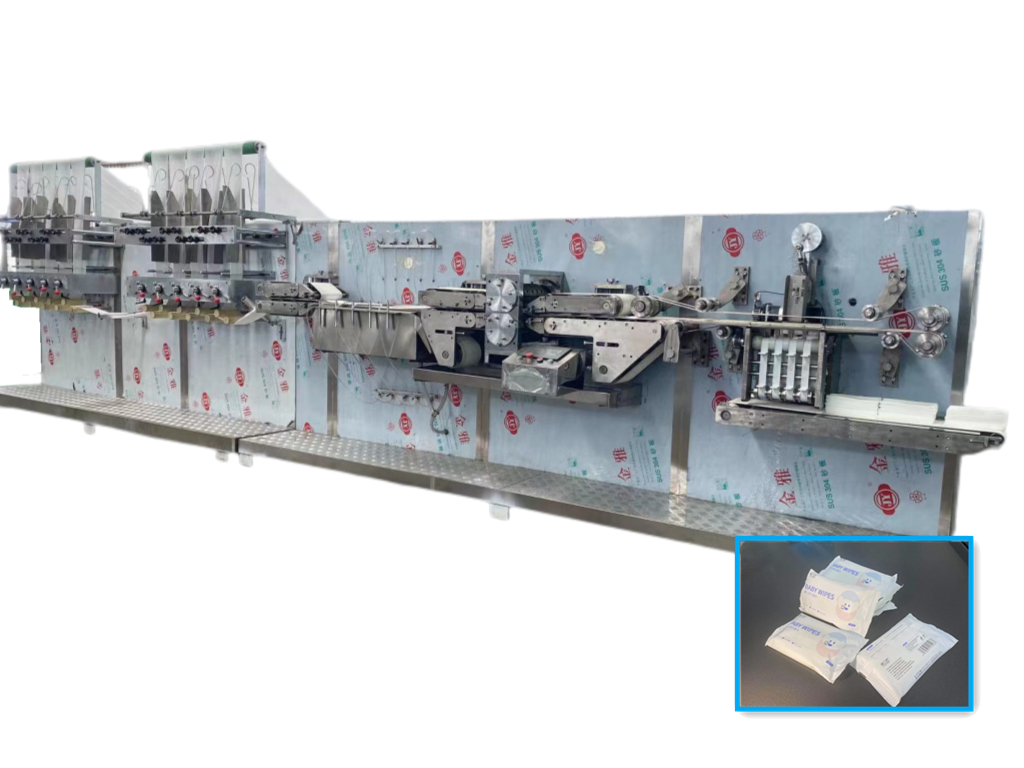

① 12道濕巾折疊加液機
12 lines wet wipes adding liquid and folding machine
② 全自動濕巾包裝機
Automatic wet wipes packing machine

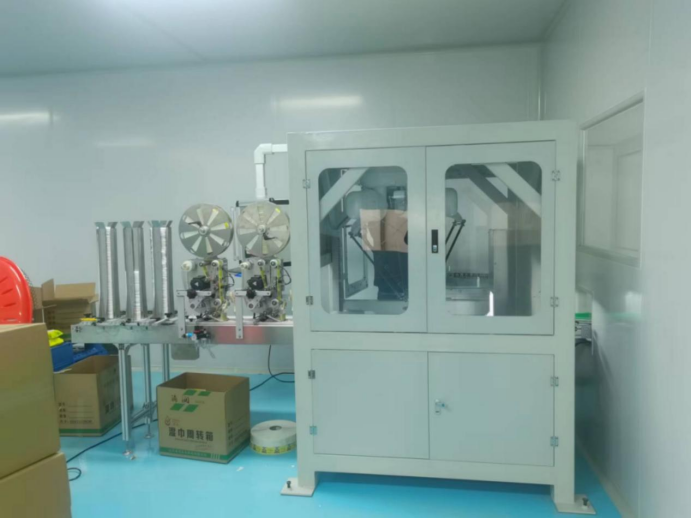

③ 全自動機械手貼蓋機
Automatic manipulator capping machine
2大卷無紡布卷材上機→被動放料→分切→幅寬方向N折→加液→牽引→長度方向切斷→計數碼料
Large roll of non-woven coil on the machine→Passive feeding→Slitting
→N-fold in width direction→ Feeding →Towing→Length direction cut- off
→ recording palletizing
包裝膜上機→打碼→開橢圓孔→定位貼標→制袋→濕巾進袋→ 縱向背封→趕氣→往復式橫封及插角→切斷→制品輸出
Packaging film on the machine→Coding→Punching the elliptic hole→Locating and labeling→Bag making→Wet towel into the bag→Longitudinal back seal→Air release→Reciprocating cross seal and insert angle→Cutting→Products delivery
塑料蓋放入集料槽→自動出料→貼標→機器手抓取→噴膠→視覺檢測來料濕巾→貼蓋→成品輸出
Plastic cover placed into the aggregate tank→Automatic discharge→labeling→ manipulator grabbing→spraying→Visual detection of the incoming material of wet wipes→Stick cover→Products delivery
60-65包每分鐘
